Fieldbus junction box for PMCprotego D (size 48 A and 72 A) Interfaces: CAN-in, CAN-out, RS232 with termination and monitoring voltage switch.

Part Number: 8176470

Piezas en stock: 0

Technical data at 3 x 400 V AC: Continuous output current: 72 A, Imax (5 s) = 140 A, Power consumption in S1 mode: 50 kVA required accessories: Brake resistor 10 Ohm.

Part Number: 8176426

Piezas en stock: 0

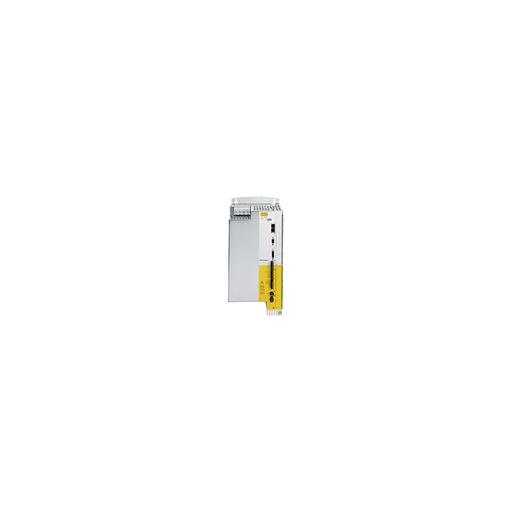

Technical data at 3 x 400 V AC: Continuous output current: 48 A, Imax (5 s) = 96 A, Power consumption in S1 mode: 35 kVA required accessories: Brake resistor 15 Ohm.

Part Number: 8176425

Piezas en stock: 0

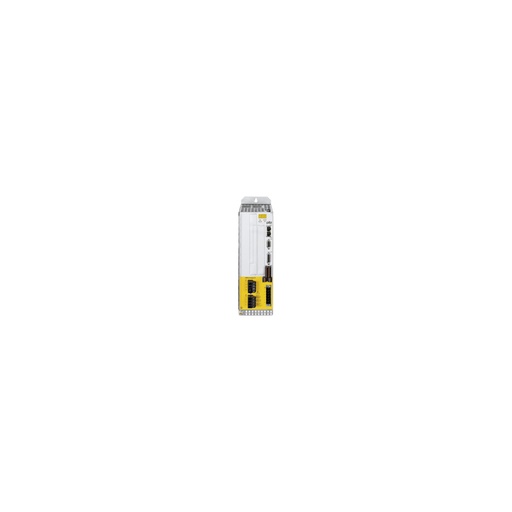

Base device with increased peak output current Technical data at 3 x 400 V AC: Continuous output current: 24 A, Imax (2 s) = 72 A, Imax (5 s) = 48 A, Power consumption in S1 mode: 18 kVA Integral brake resistor.

Part Number: 8176424

Piezas en stock: 0

Base device with increased peak output current Technical data at 3 x 400 V AC: Continuous output current: 12 A, Imax (2 s) = 30 A, Imax (5 s) = 24 A, Power consumption in S1 mode: 9 kVA Integral brake resistor.

Part Number: 8176423

Piezas en stock: 0

Rated current: 100 A Typ. power dissipation: 24 W Protection class: IP20 Connection type: Terminals.

Part Number: 8176382

Piezas en stock: 0

suitable for the PMCtendo-DD5/230VAC Type: FZECQU 400x65-66 Performance at 40? C/100 % ED: 600 W Resistance value: 66 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176380

Piezas en stock: 0

suitable for the PMCtendo-DD5/230VAC Type: FZECQU 200x65-66 Performance at 40? C/100 % ED: 300 W Resistance value: 66 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176378

Piezas en stock: 0

suitable for PMCtendo-DD4/40A and PMCprotego D/48 Type: FZZCQU 500x65-15 Performance at 40? C/100 % ED: 1600 W Resistance value: 15 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176376

Piezas en stock: 0

suitable for the PMCprotego D/01-12A and PMCtendo DD4/01-20A Type: FZZCQU 500 x 65-33 Performance at 40? C/100 % ED: 1600 W Resistance value: 33 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176374

Piezas en stock: 0

suitable for the PMCprotego D/01-12A and PMCtendo DD4/01-20A Type: FZECQU 400 x 65-33 Performance at 40? C/100 % ED: 600 W Resistance value: 33 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176372

Piezas en stock: 0

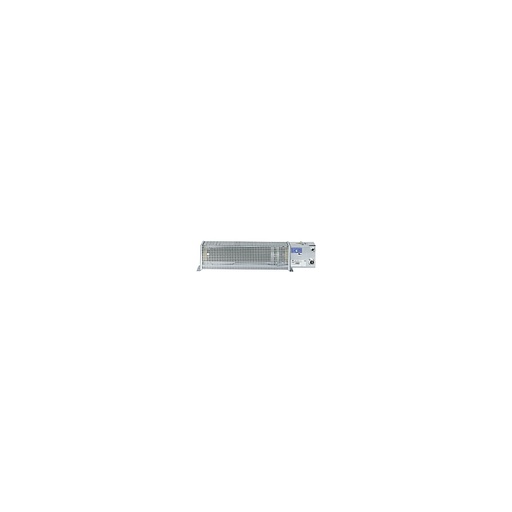

suitable for PMCtendo-DD4/70A and PMCprotego D/72 Type: FZZCQU 500x65-10 Performance at 40? C/100 % ED: 1600 W Resistance value: 10 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176364

Piezas en stock: 0

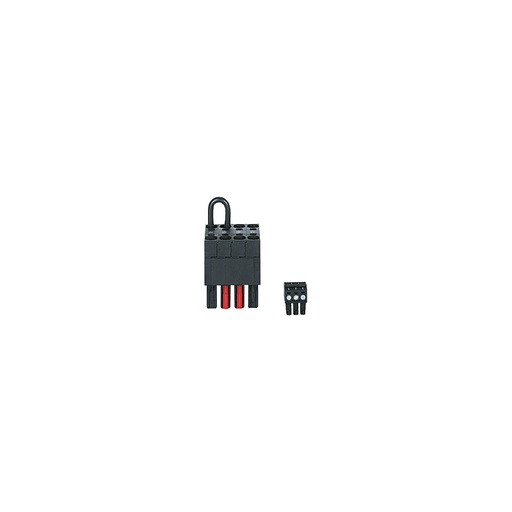

Set consists of connector X8Y Push in spring connection connector X4A Screw connection with tension sleeve for device to 24A

Part Number: 8176348

Piezas en stock: 0

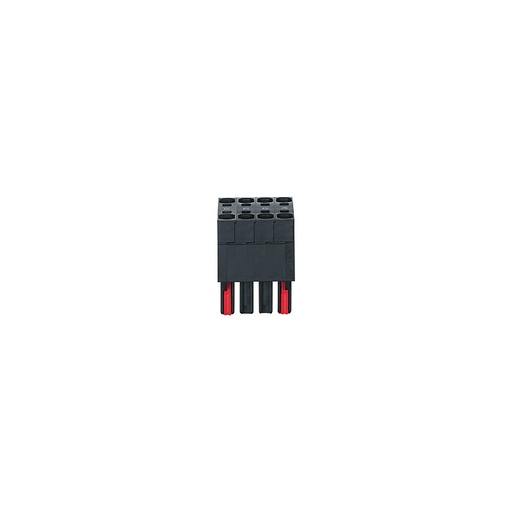

connector X0Y Push in spring connection for device to 24A

Part Number: 8176347

Piezas en stock: 0

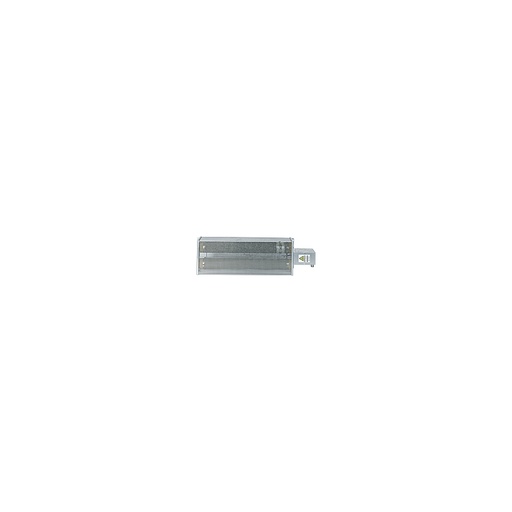

suitable for the PMCprotego D/24A Type: FZZCQU 500 x 65-23 Performance at 40? C/100 % ED: 1600 W Resistance value: 23 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176334

Piezas en stock: 0

suitable for the PMCprotego D/24A Type: FZECQU 400x65-23 Performance at 40? C/100 % ED: 600 W Resistance value: 23 OHM Temperature switch 180? C: Signal contact 2A/24 V DC (DC11) UL version.

Part Number: 8176332

Piezas en stock: 0

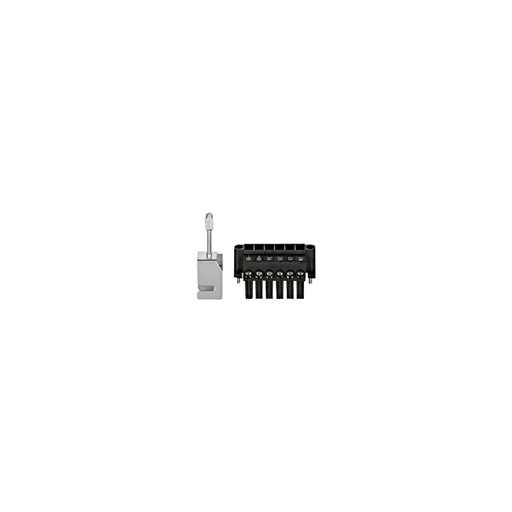

consisting of connector X9 and shielded terminal for devices up to 24 A.

Part Number: 8176330

Piezas en stock: 0

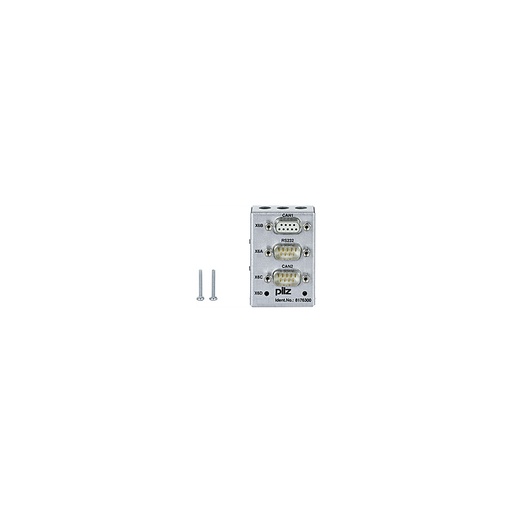

Fieldbus junction box for PMCprotego D (size 1.5 A to 24 A) Interfaces: CAN-in, CAN-out, RS232 with termination and monitoring voltage switch.

Part Number: 8176300

Piezas en stock: 0

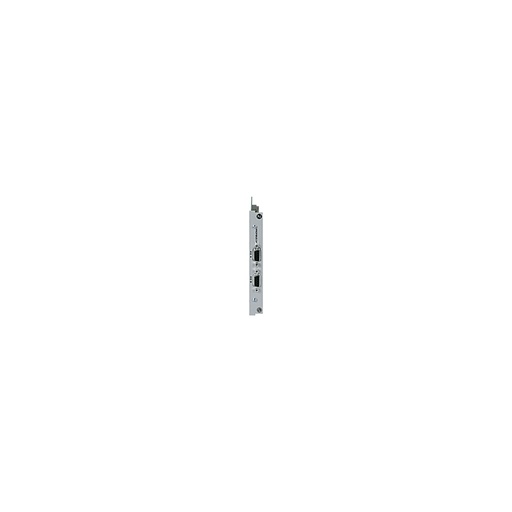

Card can be used in PMCtendo DD5 & PMCprotego.

Part Number: 8176280

Piezas en stock: 0

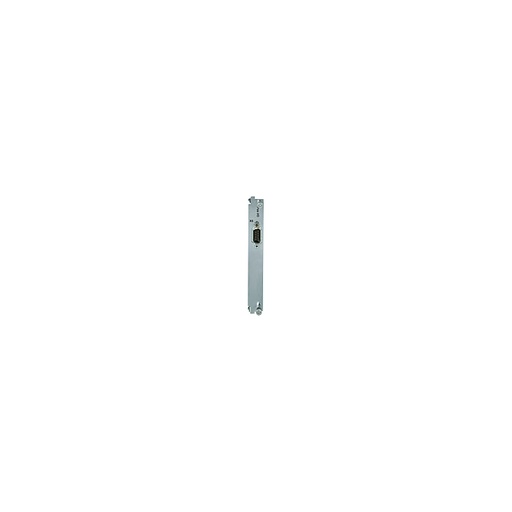

Card can be used in PMCprotego Connector X5 (e.g. for Encoder emulation).

Part Number: 8176278

Piezas en stock: 0
